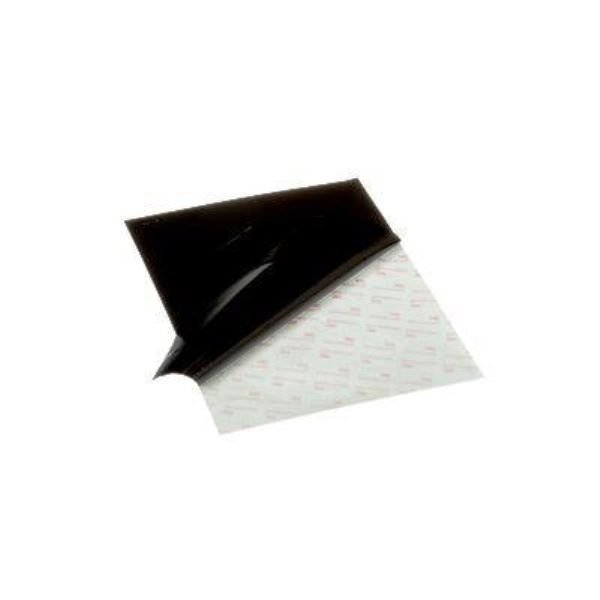

3M™ Electrically Conductive Single-Sided Tape CEF-3BV is a conductive fabric tape that offers excellent grounding performance between substrates and high EMI shielding performance (typically greater than 60 dB at specific frequencies). This single-sided fabric tape consists of a copper/nickel-coated conductive polyester fabric and an acrylic-based electrically conductive pressure sensitive adhesive (CPSA). It offers excellent handling characteristics, is thin in overall construction and allows for easy rework.
Typical properties
Details
|
Adhesion Strength (Imperial) |
1300 gf/in |
|
Adhesive Type |
Acrylic |
|
Application |
EMI Shielding, Electrostatic Discharge (ESD) |
|
Backing (Carrier) Material |
Woven Fabric |
|
Brands |
3M™ |
|
Electrical Resistance |
XY-axis 0.4 Ω |
|
Factory ISO Certification |
No ISO Certification information available |
|
Liner Material |
Paper |
|
Maximum Operating Temperature (Celsius) |
121 ℃ |
|
Maximum Operating Temperature (Fahrenheit) |
250 ℉ |
|
Minimum Operating Temperature (Celsius) |
-40 ℃ |
|
Minimum Operating Temperature (Fahrenheit) |
-40 ℉ |
|
Product Color |
Black |
|
Product Usage |
Display Wraps, EMI Shields, Sensors, Display Chip on Flex, Printed Circuit Boards |
|
Shelf Life |
12 Month |
|
Total Tape Thickness without Liner (Imperial) |
2.835 mil |
|
Total Tape Thickness without Liner (Metric) |
0.072 mm |
